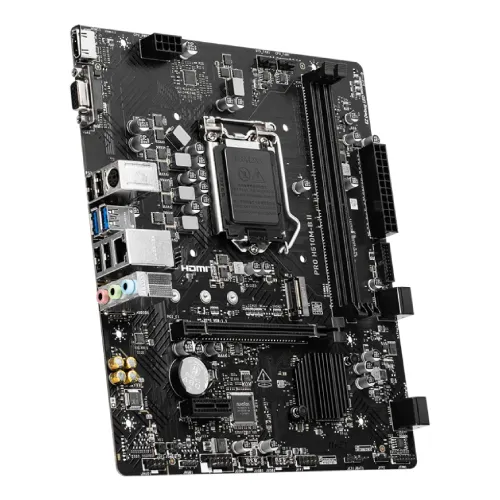

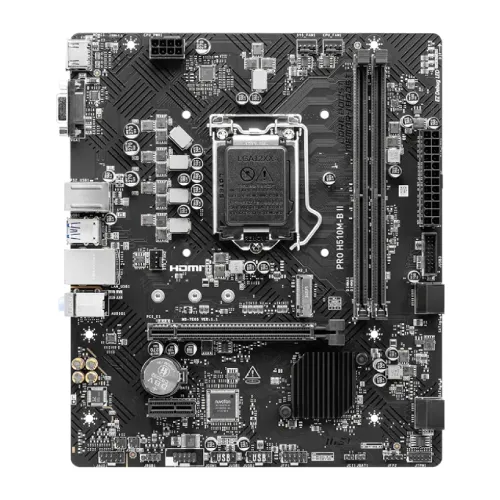

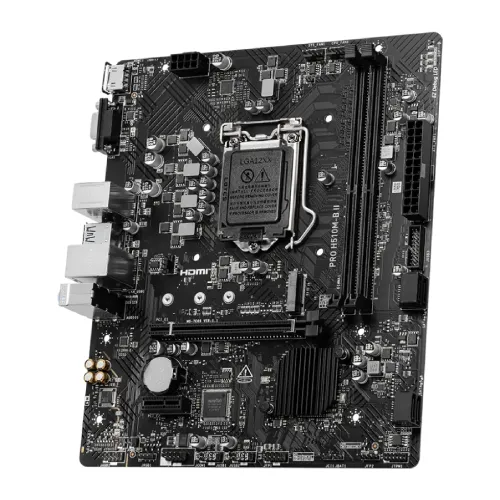

MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard Price in Bangladesh
Product Code: MB476085618
৳8,900
In Stock0 review(s)
Key Features
Model: MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None
Specification
| Basic Information | |
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
| Chipset | INTEL H470 |
| Form Factor | mATX 202mmx236mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 1x M.2 |
| Memory | |
| Type | DDR4 |
| Slots | 2 |
| Supported Memory | Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | 64GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| Connector & Ports | |
| HDMI | 1x HDMI 1.4 |
| Display Port (s) | 1x VGA |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek 8111H Gigabit LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 years Warranty |
