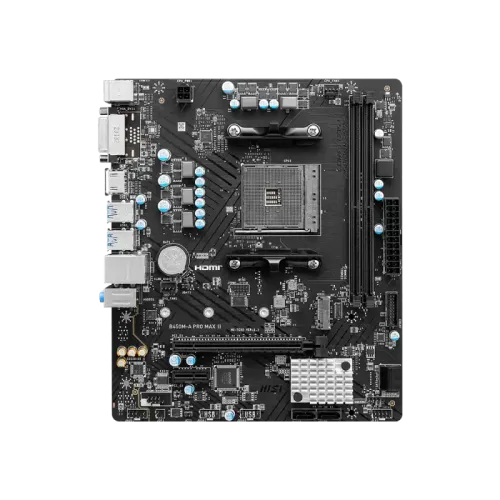

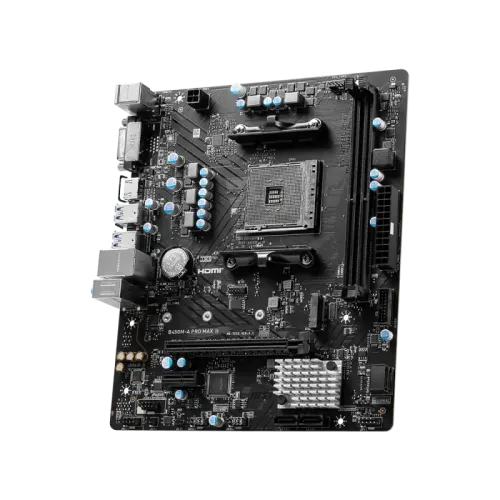

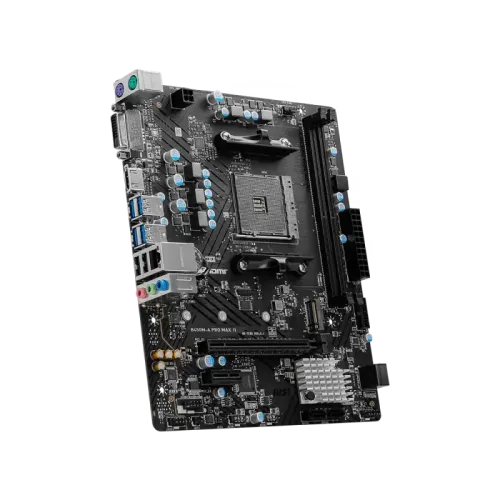

MSI B450M-A PRO MAX II AMD AM4 Motherboard Price in Bangladesh

Product Code: MB809138060

৳8,400

In Stock0 review(s)

Key Features

Model: MSI B450M-A PRO MAX II AMD AM4 Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processors Socket AM4
Chipset	AMD B450
Form Factor	mATX 200mmx236mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Memory
Type	DDR4
Slots	2
Supported Memory	Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory	64GB
Graphics
Graphics	1x HDMI Support HDMITM 1.4, maximum resolution of 4K 24Hz 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz
Connector & Ports
HDMI	1x HDMI
DVI-D (s)	1x DVI
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek 8125 2.5Gbps LAN controller
Supported Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Warranty Information
Manufacturing Warranty	03 Years Warranty
