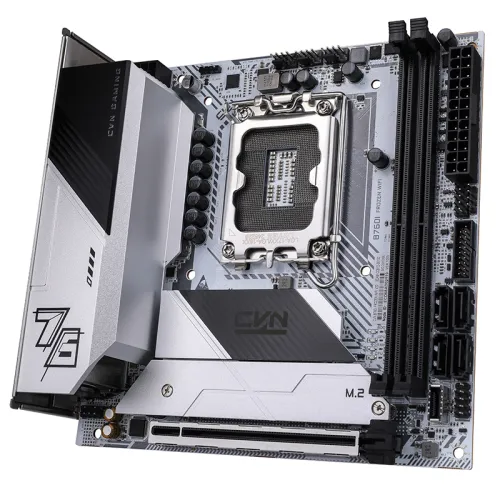

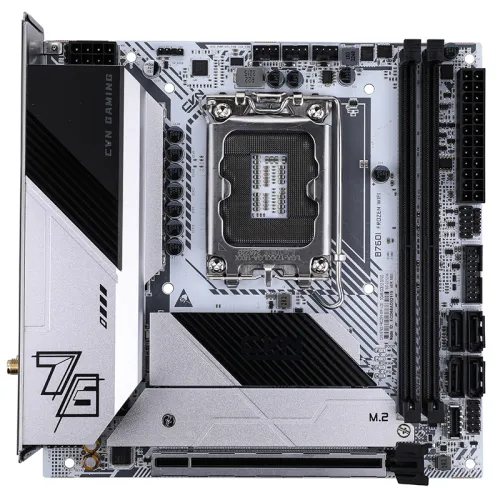

Colorful CVN B760I FROZEN WIFI V20 ITX Motherboard Price in Bangladesh

Product Code: MB294871450

৳19,400

In Stock0 review(s)

Key Features

Model: Colorful CVN B760I FROZEN WIFI V20 ITX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
Chipset	Intel B760
BIOS	128M UEFI, supporting multiple languages
Form Factor	ITX 170mm x 170mm
Audio	5.1 Channel sound card
Expansion Slots
PCI	1 PCIe 5.0 x16 slot
Memory
Type	DDR4
Slots	2
Supported Memory	- support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory - support Intel Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology
Maximum Memory	up to 64 GB of memory (a single socket can support up to 32 GB of memory)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Integrated Graphics Processor-Intel HD Graphics support	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
LAN Port (s)	RTL8125 2.5Gbit network card
Wireless Communication module	AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2
Supported Storage	A total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)
A total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID	support 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots
RAID	See the official BIOS user guide of Colorful for the steps to create a RAID disk array
Internal I/O Ports	Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 2 Wi-Fi 6 antenna interfaces - 3 audio interfaces (audio input/audio output/microphone) - 1 clear CMOS button On board device interface: - 1 CPU fan pin - 1 system fan pin - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 1 5V 3-pin ARGB pin - 1 front audio pin - 1 front panel pin - 1 speaker pin
Rear I/O interface	- 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 2 Wi-Fi 6 antenna interfaces - 3 audio interfaces (audio input/audio output/microphone) - 1 clear CMOS button On board device interface
Warranty Information
Manufacturing Warranty	3 years
