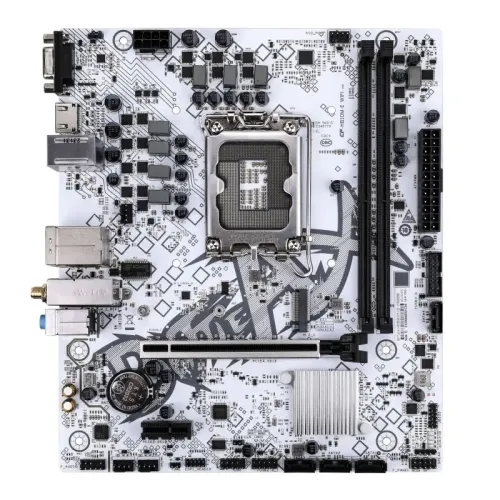

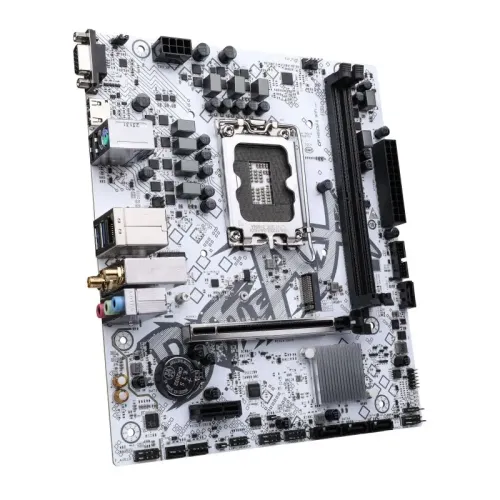

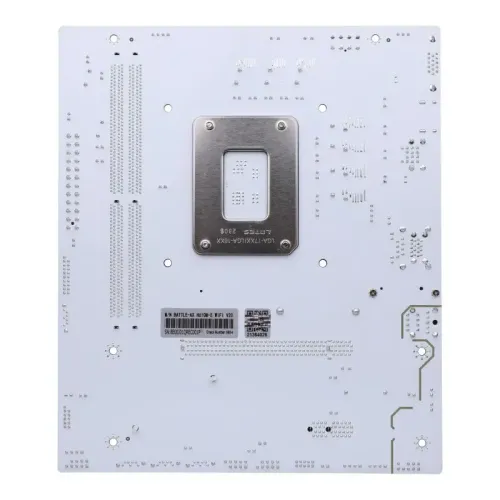

Colorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard Price in Bangladesh

Product Code: MB762054381

৳10,100

In Stock0 review(s)

Key Features

Model: Colorful BATTLE-AX H610M-E WIFI V20 mATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
Chipset	Intel H610
BIOS	128M UEFI, supporting multiple languages
Form Factor	M-ATX 245mm x 245mm
Audio	5.1 sound card
Expansion Slots
PCI	1xPCIe 4.0 x16 slot 1xPCIe 3.0 x1 slot
Memory
Type	DDR4
Slots	2
Supported Memory	- DDR4-3200/2933/2666/2400MHz memory - support dual-channel memory technology
Maximum Memory	support up to 64 GB of memory (a single slot can support up to 32 GB of memory)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×VGA interface
Integrated Graphics Processor-Intel HD Graphics support	1 x HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×VGA interface
Connector & Ports
HDMI	1x HDMI
VGA (s)	- 1×VGA interface
LAN Port (s)	RTL8111H Gigabit network card
Wireless Communication module	RTL8821CE/AC3165 WiFi 5 Wireless network, Bluetooth 4.2
Supported Storage	A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported - M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)
A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported - M2_ 1 slot	supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)
Internal I/O Ports	Rear I/O: - 1×PS/2 interface - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×VGA interface - 1×Gigabit network interface - 3×Audio interfaces (audio input/audio output/microphone) On board: - 1×CPU fan pin - 2×System fan pins - 1×water cooling pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×COM port pin - 1×ME write protection jumper - 1×Clear CMOS jumper - 1×BIOS burner pin - 1×POST Card pin - 1×Wake-up control jumper
Rear I/O	- 1×PS/2 interface - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×VGA interface - 1×Gigabit network interface - 3×Audio interfaces (audio input/audio output/microphone) On board
Warranty Information
Manufacturing Warranty	3 years
