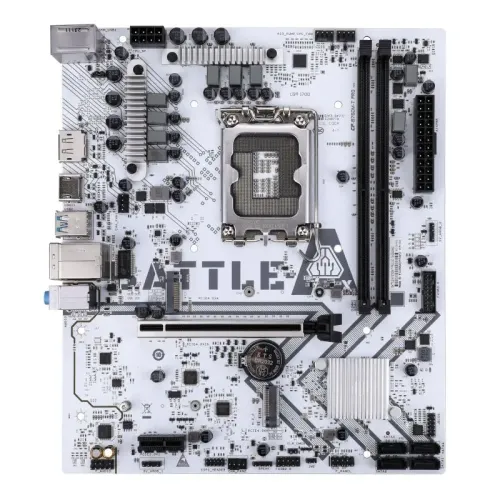

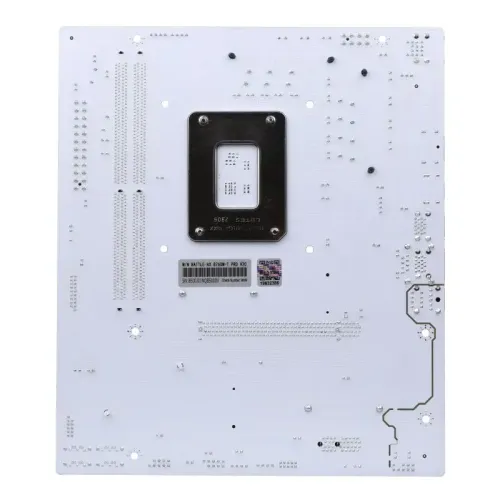

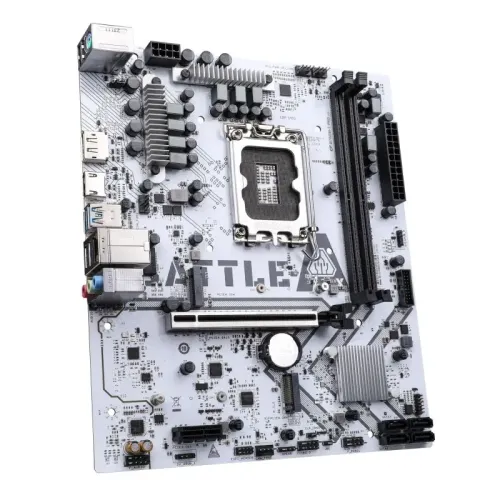

Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard Price in Bangladesh

Product Code: MB198875546

৳11,200

In Stock0 review(s)

Key Features

Model: Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
Chipset	Intel B760
BIOS	128M UEFI, supporting multiple languages
Form Factor	M-ATX 240mm x 207mm
Audio	5.1 Channel sound card
Expansion Slots
PCI	1xPCIe 4.0 x16 slot 1xPCIe 3.0 x1 slot
Memory
Type	DDR4
Slots	2
Supported Memory	- support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory - support Intel Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology
Maximum Memory	support up to 64 GB of memory (a single socket can support up to 32 GB of memory)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
Integrated Graphics Processor-Intel HD Graphics support	- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
Connector & Ports
HDMI	1x HDMI
VGA (s)	- 1×DP 1.2 interface
LAN Port (s)	RTL8125 2.5G network card
Supported Storage	2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel)
2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arra	support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M2_ 2 slot
Internal I/O Ports	Rear I/O interface: - 1×PS/2 interface - 2×USB 2.0 interfaces - 4×USB 3.2 Gen 1 Type-A interfaces - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1×CPU fan pin - 2×system fan pins - 1×water cooling pump pin - 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces - 2×5V 3-pin ARGB pins - 1×front audio pin - 1×front panel pin - 1×speaker pin - 1×ME write protection jumper - 1×clear CMOS jumper - 1×BIOS burner pin - 1×POST card pin - 1×PS/2 call Wake up control jumper
Rear I/O interface	- 1×PS/2 interface - 2×USB 2.0 interfaces - 4×USB 3.2 Gen 1 Type-A interfaces - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) Onboard device interface
Warranty Information
Manufacturing Warranty	3 years
