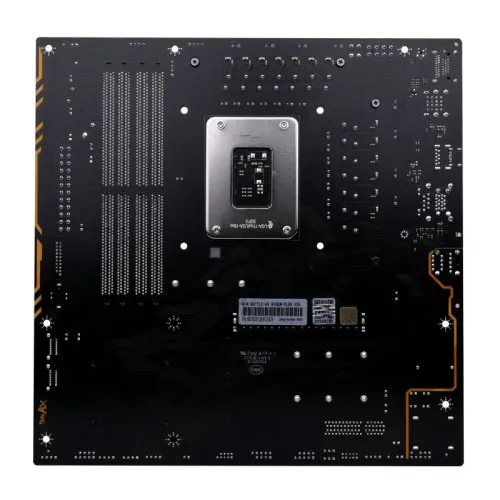

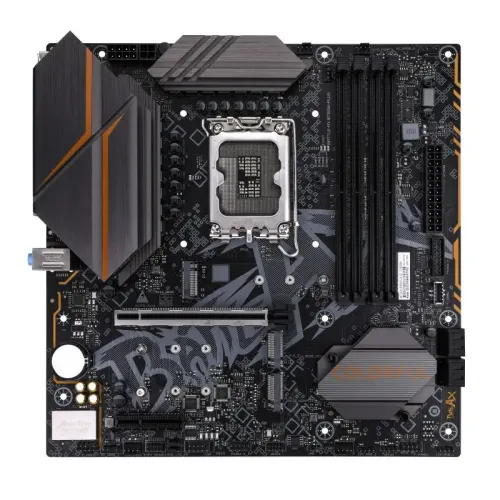

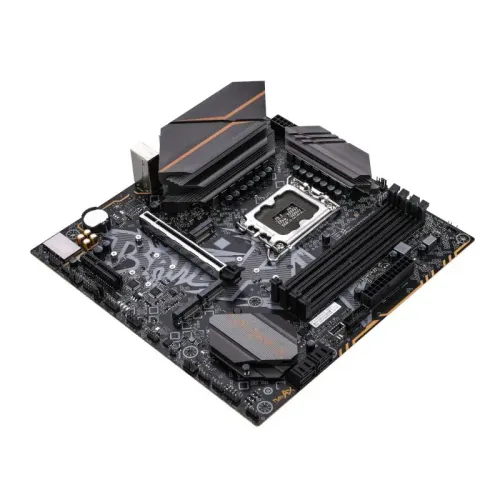

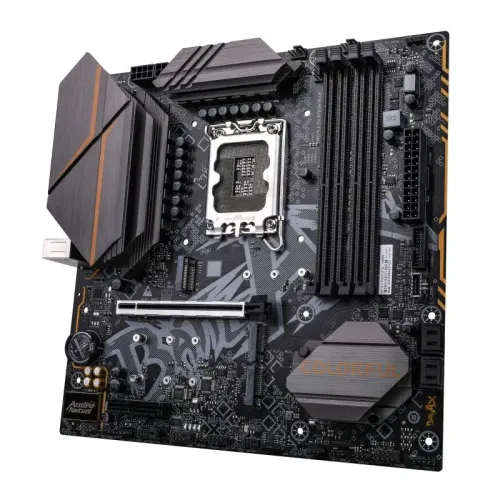

Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard Price in Bangladesh

Product Code: MB175851802

৳16,900

In Stock0 review(s)

Key Features

Model: Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium ® And Cylon processor
Chipset	Intel B760
BIOS	128M UEFI, supporting multiple languages
Form Factor	M-ATX 245mm x 245mm
Audio	5.1 Channel sound card
Expansion Slots
PCI	1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot
Memory
Type	DDR4
Slots	4
Supported Memory	DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Intel is supported Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology
Maximum Memory	up to 128 GB of memory (a single socket can support up to 32 GB of memory)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Integrated Graphics Processor-Intel HD Graphics support	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
LAN Port (s)	RTL8125 2.5Gbit network card
Supported Storage	A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID	support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots
Internal I/O Ports	Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) On board device interface: - 1×CPU fan pin - 3 system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pin - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB lamp effect control jumper
Rear I/O interface	- 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) On board device interface
Warranty Information
Manufacturing Warranty	3 years
