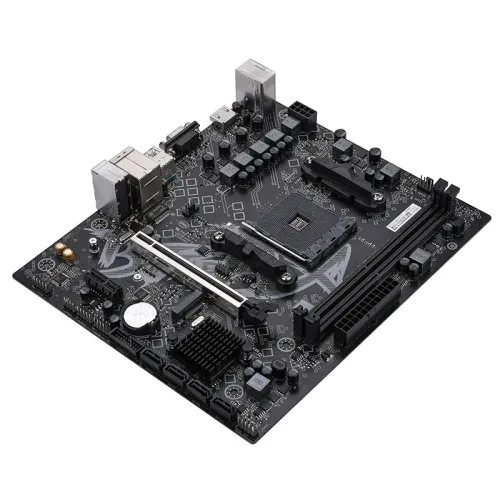

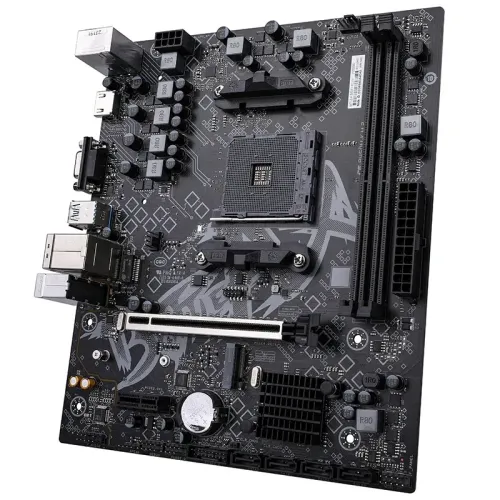

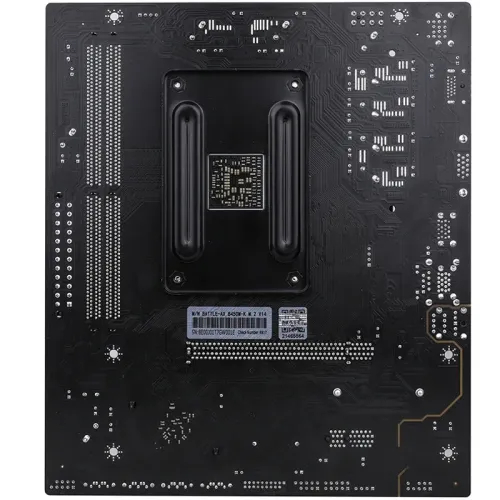

Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard Price in Bangladesh

Product Code: MB310493257

৳7,600

In Stock0 review(s)

Key Features

Model: Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
Chipset	AMD B450
BIOS	128M UEFI, support multiple languages
Form Factor	M-ATX 230mm x 197mm
Audio	Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Expansion Slots
PCI	1×PCIe 3.0 x16 slot 1×PCIe 2.0 x1 slot
M.2 Socket	1x M.2 slot M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel)
1x M.2 slot M.2_1 slot	supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel)
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133MHz memory Support Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology
Maximum Memory	up to 64GB of memory (a single socket can support up to 32 GB of memory)
Connector & Ports
HDMI	1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
VGA (s)	1×VGA interface
LAN Port (s)	1×Gigabit network interface RTL8111H Gigabit Network Card
Supported Storage	1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel)
1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces M.2_1 slot	supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel)
Audio	Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Internal I/O Ports	Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Digital audio pin -1×Clear CMOS jumper -1×BIOS burner pin -1×Debug light pin -1×USB live control jumper
Rear I/O	-2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/audio output/microphone) On board
Others
Special Features	Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
Power Management	Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor
Warranty Information
Manufacturing Warranty	03 years
