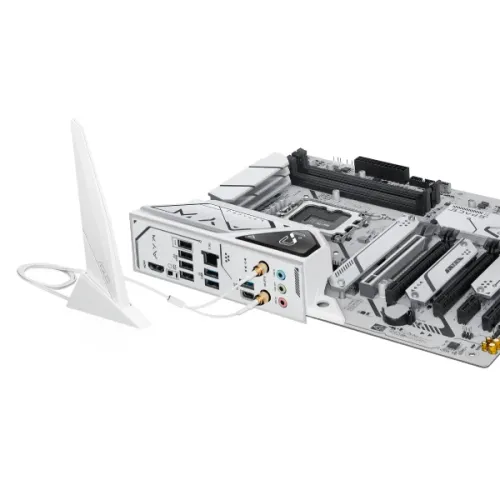

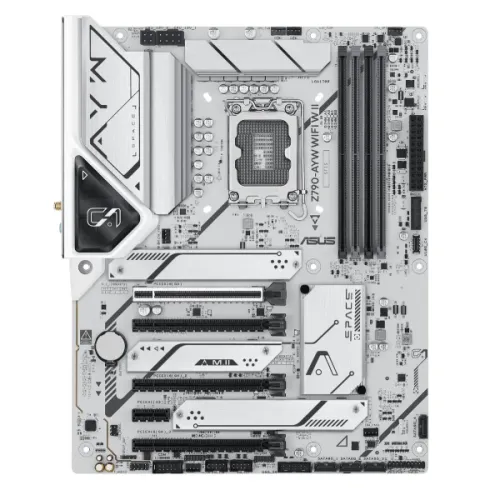

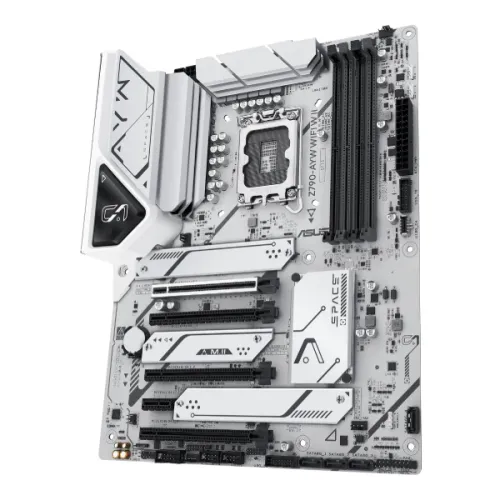

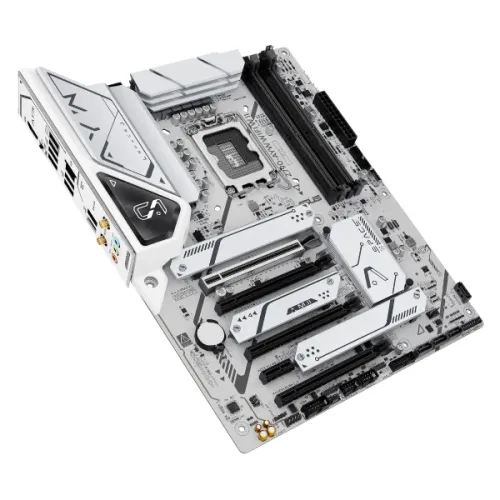

ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard Price in Bangladesh

Product Code: MB783535058

৳38,300

In Stock0 review(s)

Key Features

Model: ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z790 Chipset
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports	Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
M.2 Socket	Total supports 3 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
Memory
Type	DDR5
Slots	4 x DIMM slots
Supported Memory	8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module OptiMem II
Maximum Memory	192GB
Graphics
Graphics	1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1
Connector & Ports
HDMI	1 x HDMI
USB (s)	Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 6 (802.11 ax) Supports 2.4/5GHz frequency band Bluetooth v5.3
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio	3 x audio jacks
Internal I/O Ports	Back Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin Front Panel System header 1 x Thunderbolt (USB4) Header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable RGB Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation ASUS DriverHub AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years
