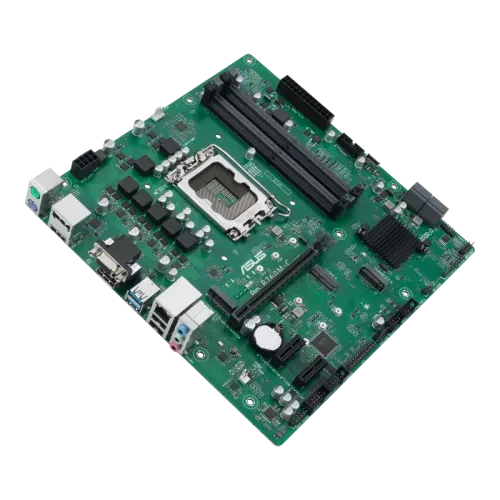

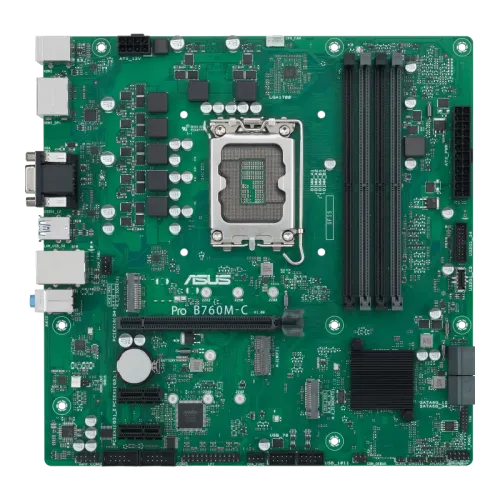

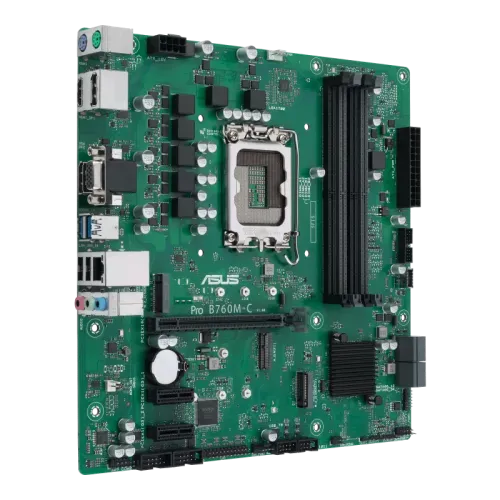

ASUS PRO B760M-C-CSM Micro-ATX Motherboard Price in Bangladesh

Product Code: MB663598880

৳16,800

In Stock0 review(s)

Key Features

Model: ASUS PRO B760M-C-CSM Micro-ATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128Mb Flash ROM
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports	Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II
Maximum Memory	Max. 192GB
Graphics
Graphics	2 x DisplayPort 1 x VGA port 1 x HDMI port* Support max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	2 x DisplayPort
VGA (s)	1 x VGA port
USB (s)	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Intel 1Gb Ethernet ASUS LANGuard
Wireless Communication module	M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection
Bundled Software	ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE)
Warranty Information
Manufacturing Warranty	3 years
