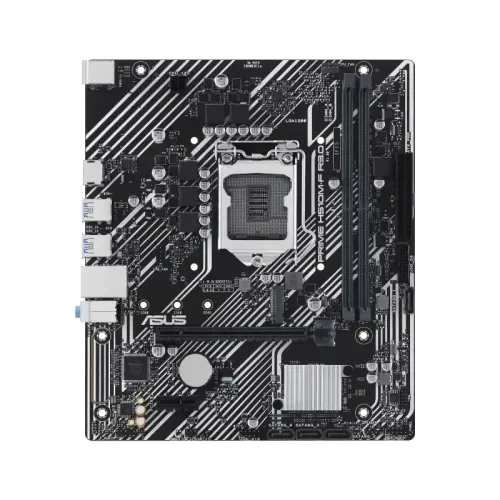

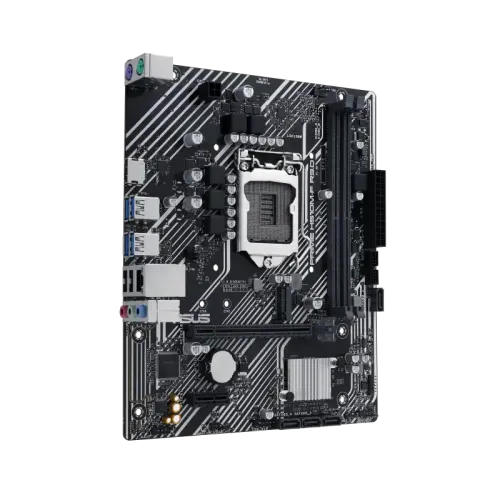

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard Price in Bangladesh

Product Code: MB161177595

৳9,600

In Stock0 review(s)

Key Features

Model: ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H470 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
Expansion Slots
PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
Maximum Memory	Max. 64GB
Graphics
Graphics	Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Connector & Ports
HDMI	1x HDMI
USB (s)	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports	Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Internal I/O Ports	Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1 pin)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years
