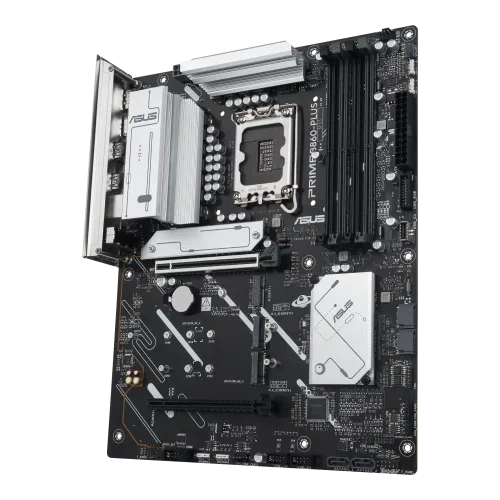

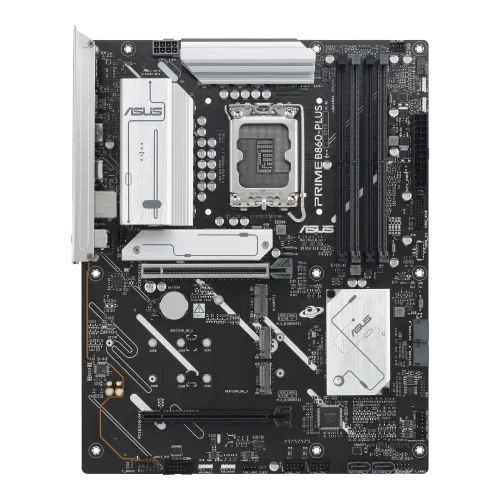

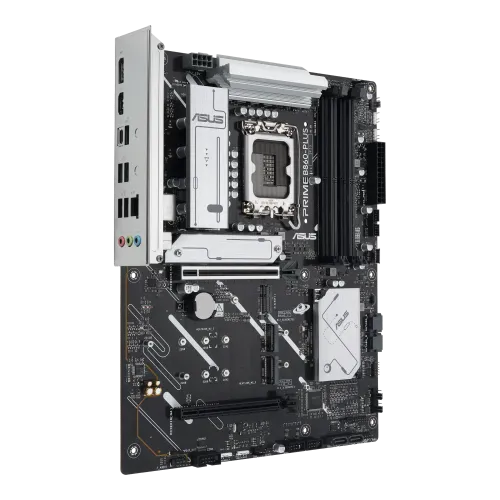

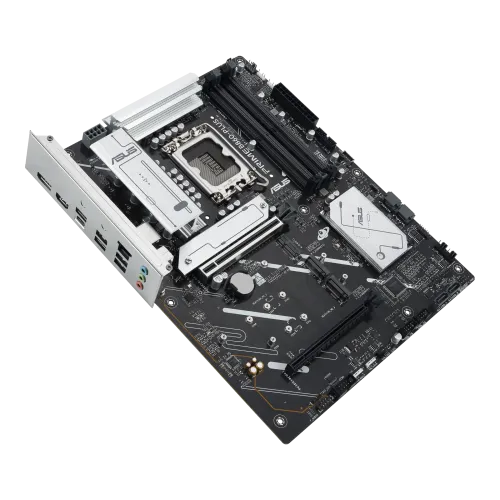

Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard Price in Bangladesh

Product Code: MB150402777

৳25,900

In Stock0 review(s)

Key Features

Model: Asus PRIME B860-PLUS-CSM LGA 1851 ATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset	INTEL B860
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback
Realtek 7.1 Surround Sound High Definition Audio CODEC Supports	Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI	Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket	3x M.2
Memory
Type	DDR5
Slots	4
Supported Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory	Maximum Memory Capacity 256GB
Graphics
Graphics	1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4a
USB (s)	Rear USB (Total 6 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps port (1 x USB Type-C®) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module is sold separately.
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAID	SATA RAID 0/1/5/10
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Warranty Information
Manufacturing Warranty	3 Year warranty
