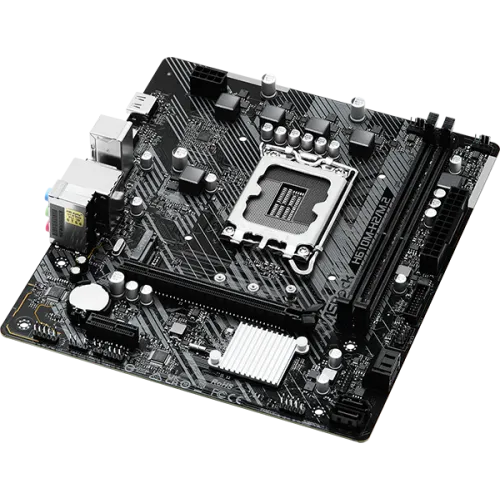

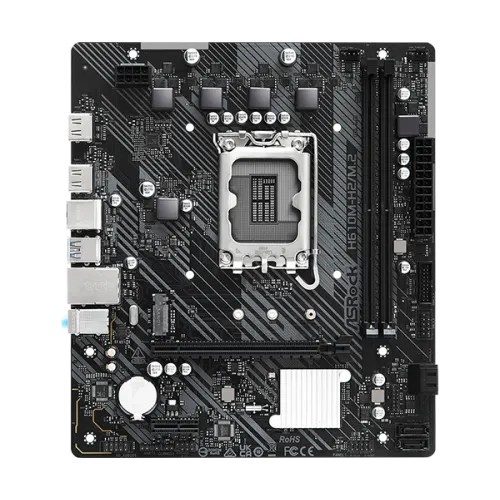

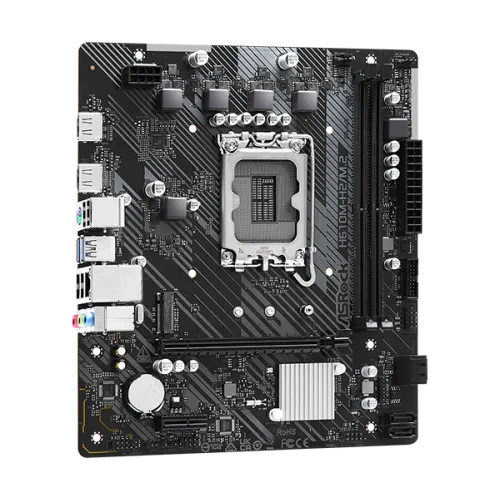

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard Price in Bangladesh

Product Code: MB557125272

৳9,700

In Stock0 review(s)

Key Features

Model: ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset	Intel H610
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor	- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
- Micro ATX Form Factor	8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI	- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset	- 1 x PCIe 3.0 x1 Slot (PCIE2)*
M.2 Socket	- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	2 x DDR4 DIMM Slots
Supported Memory	- Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0
Maximum Memory	64GB
Graphics
Graphics	- Intel® Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Connector & Ports
HDMI	2 x HDMI Port
USB (s)	- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front)
LAN Port (s)	- Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H
Supported Storage	- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Internal I/O Ports	1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto-detect if 3-pin or 4-pin fan is in use.
TPM (Trusted Platform Module )	- 1 x SPI TPM Header
Others
Bundled Software	- ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty	3 years
