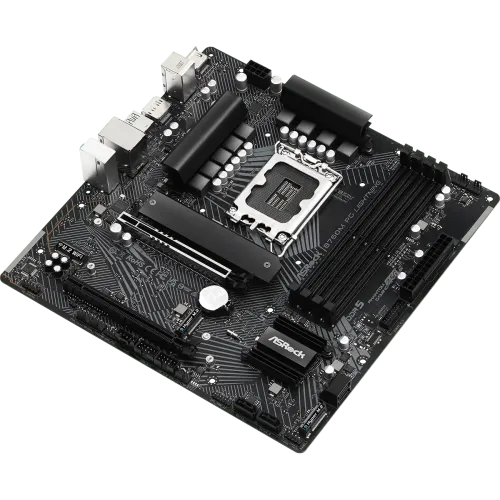

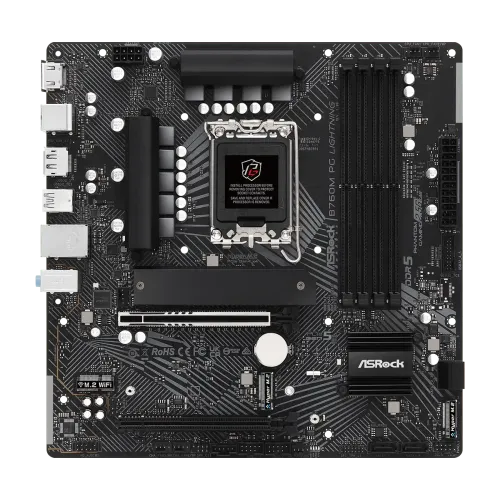

ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard Price in Bangladesh

Product Code: MB224875146

৳16,200

In Stock0 review(s)

Key Features

Model: ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard Chipset: Not specified CPU Socket: Not specified RAM: Not specified LAN: Not specified M.2 Slots: Not specified Features: None

Specification

Basic Information
Supported CPU	Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT)
Chipset	Intel B760
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Micro ATX Form Factor	9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Expansion Slots
PCI	CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire
CPU	1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset
M.2 Socket	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Memory
Type	DDR5
Slots	4 x DDR5 DIMM Slots
Supported Memory	Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Supports Intel® Extreme Memory Profile (XMP) 3.0
Maximum Memory	256GB
Graphics
Graphics	Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1 x DisplayPort 1.4
USB (s)	1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)
LAN Port (s)	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Supported Storage	CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
CPU	1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fa	Line in / Front Speaker / Microphone
TPM (Trusted Platform Module )	- 1 x SPI TPM Header
Others
Special Features	Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer
Bundled Software	Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty	3 years
